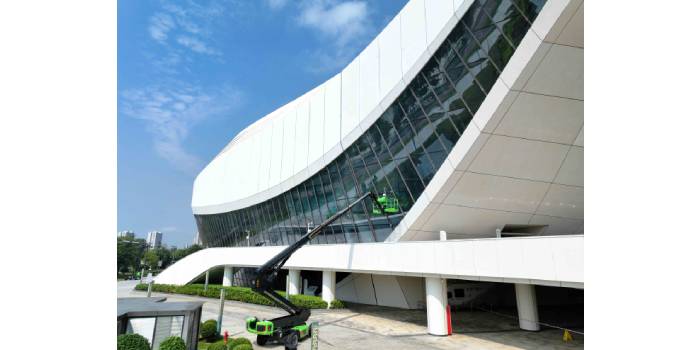

LT20JE

Safe And Reliability ：：：Standard dual channel sensor, safe and reliable;Electric emergency power systems provide more security;The protection level of components of the whole machine is above IP65, the protection level is high.
Intelligent And Efficient：：：Composite action, intelligent and effificient;Electronic differential combined with suspending axle technology for better traffificability;The turntable rotates 360 ° continuously with small tail, which is suitable for narrow space operation；；；Four wheel strong AC electric drive, climbing capacity up to 45%, strong traffificability；；；High-power charger, large-capacity power battery, fast charging, ultra-long endurance.
Energy Saving And Comfort：：：Self -weight decrease through the booms, energy saving and stable;Automatic deceleration at the action limit position, stable action, small shaking;Optimize the electric control algorithm with the load sensitive hydraulic system to achieve accurate power output.
Green And Environmental Protection：：：Pure electric power, low use and maintenance cost, high return on investment;Green and environmental protection, no emission, low noise, meet indoor and outdoor working conditions.

Max.Working Height	21.5 m	70.54 ft.
Max.Platform Height	19.5 m	63.98 ft.
Max.Operating Range	14 m	45.93 ft.
Overall Length(Stowed)	10.2 m	33.46 ft.
Overall Width(Stowed)	2.42 m	7.94 ft.
Overall Height(Stowed)	2.75 m	9.02 ft.
Overall Length(Transport)	10.2 m	33.46 ft.
Overall Width(Transport)	2.29 m	7.51 ft.
Overall Height(Transport)	2.5 m	8.20 ft.
Turntable Tailswing(Raised)	1.55 m	5.09 ft.
Platform Size(L×W×H)	1.83×0.76×1.1 m	6x2.6x3.7 ft.
Tyres	33×12-20（Solid off-road tyre）	33×12-20（Solid off-road tyre）
Platform Load(Unrestricted/Restricted)	320 kg	705.48 lb
Gradeability	45 %	45 %
Max.Working Slope	X-5°/Y-5°	X-5°/Y-5°
Turret Rotation	360°(Continuous)	360°(Continuous)
Drive Steering Type	4WD×2WS	4WD×2WS
Battery（Lithium）	48V/460Ah	48V/460Ah
Charger	48V/60A	48V/60A
Hydraulic Oil Tank	100 L	6102.37 in?
